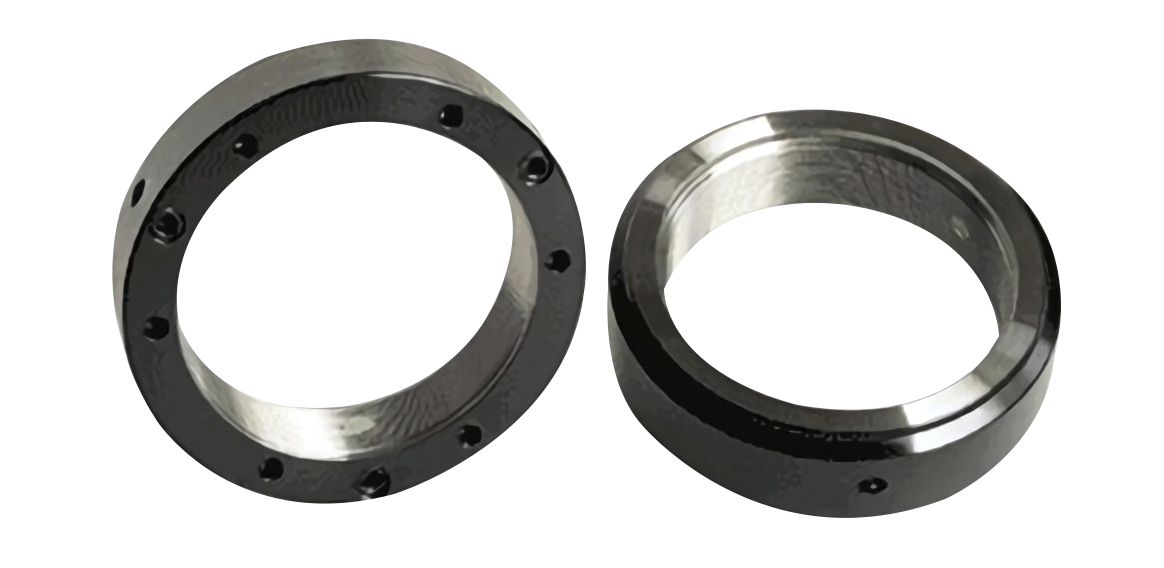

LOCK NUT

HB Type

목록으로 견적 문의

PART NO	THREAD & PITCH	Dimension										Axial Load (KN)	Set Screw (Nm)	Weight (g)
PART NO	THREAD & PITCH	d1	b2	d3	d4	B	g	t	m	m	m	Axial Load (KN)	Set Screw (Nm)	Weight (g)
HB 05	M 25 × 1.5	33.5	42	35	26	20	32.5	11	4.3	5	M6	130	8	123
HB 06	M 30 × 1.5	39	48	40	32	20	40.5	11	4.3	5	M6	160	8	152
HB 07	M 35 × 1.5	44	53	47	38	20	45.5	11	4.3	5	M6	190	8	174
HB 08	M 40 × 1.5	49	58	52	42	22	50.5	12	4.3	5	M6	210	8	220
HB 09	M 45 × 1.5	56.5	68	58	48	22	58	12	4.3	5	M6	240	8	313
HB 10	M 50 × 1.5	60	70	63	52	24	61.5	12	4.3	5	M6	300	8	331
HB 11	M 55 × 1.5	65	75	70	58	24	66.5	13	4.3	5	M6	340	8	362
HB 12	M 60 × 1.5	72	84	75	62	24	74.5	13	5.3	5	M6	380	8	467
HB 13	M 65 × 1.5	76	88	80	68	25	78.5	13	5.3	5	M6	460	8	501
HB 14	M 70 × 1.5	83	95	86	72	26	85	14	5.3	7.9	M10	490	18	590
HB 15	M 75 × 1.5	88	100	91	77	26	88	13	6.4	7.9	M10	520	18	624
HB 16	M 80 × 2	96	110	97	83	30	95	16	6.4	7.9	M10	620	18	930
HB 17	M 85 × 2	100	115	102	88	32	100	17	6.4	9.6	M12	650	35	1080
HB 18	M 90 × 2	105	120	110	93	32	108	17	6.4	9.6	M12	680	35	1140
HB 19	M 95 × 2	110	125	114	98	32	113	17	6.4	9.6	M12	710	35	1200
HB 20	M 100 × 2	115	130	120	103	32	118	17	6.4	9.6	M12	740	35	1270
HB 22	M 110 × 2	128	140	132	112	32	128	17	6.4	9.6	M12	800	35	1400
HB 24	M 120 × 2	138	155	142	122	32	140	17	6.4	9.6	M12	860	35	1760
HB 26	M 130 × 3	148	165	156	132	32	153	17	6.4	9.6	M12	920	35	1950
HB 28	M 140 × 3	160	180	166	142	32	165	17	6.4	9.6	M12	980	35	2300
HB 30	M 150 × 3	173	195	180	152	32	175	17	6.4	9.6	M12	1040	35	2500
HB 32	M 160 × 3	182	205	190	162	32	185	17	6.4	9.6	M12	1100	35	3050
HB 34	M 170 × 3	192	215	205	172	32	195	17	6.4	9.6	M12	1160	35	3280
HB 36	M 180 × 3	205	230	215	182	32	210	17	6.4	9.6	M12	1220	35	3780
HB 38	M 190 × 3	215	240	225	192	32	224	17	6.4	9.6	M12	1280	35	4030
HB 40	M 200 × 3	223	245	237	202	32	229	17	6.4	9.6	M12	1340	35	4000
