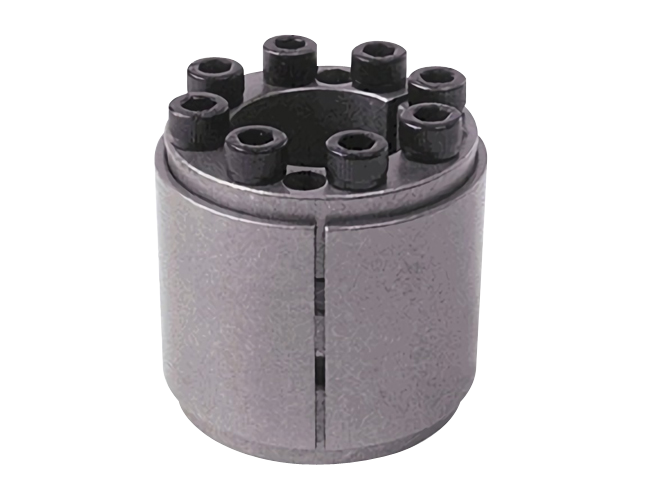

SWLE 200C Type

POWER LOCK

SWLE 200C Type

SWLE200-C can be used in connecting the shaft and boss when it requires a
No axial shift while assembling.
Required shaft : Ø 25 ~ Ø 100mm

Large scale pulley
Driver of each press

Material : DIN C45, JIS S45C, KS SM45C
Hardness : HRC 20 ~ 25
Surface treatment : Barrel grinding

목록으로 견적 문의

Specification

SWLE200C d X D	Dimension				Torque Nm	Axial Thrust KN	Screws Nm	Surface Troque Nmm	Weight
SWLE200C d X D	M	L1	L2	L	Nm	KN	Nm	N/㎟	g
25×50	M6	46	40	52	900	70	17	90	410
30×55	M6	46	40	52	1100	70	17	90	460
35×60	M6	46	40	52	1600	90	17	110	510
40×65	M6	46	40	52	2400	120	17	110	560
50×80	M6	66	56	74	4250	160	17	100	1260
60×90	M6	66	56	74	6100	200	17	120	1440
70×110	M10	80	70	90	10800	320	83	130	2870
80×120	M10	80	70	90	14500	360	83	130	3180
90×130	M10	80	70	90	18100	390	83	130	3520
100×145	M12	102	91	114	26500	520	145	120	6700
